TECHNICAL FABRICS BY THE ROLL

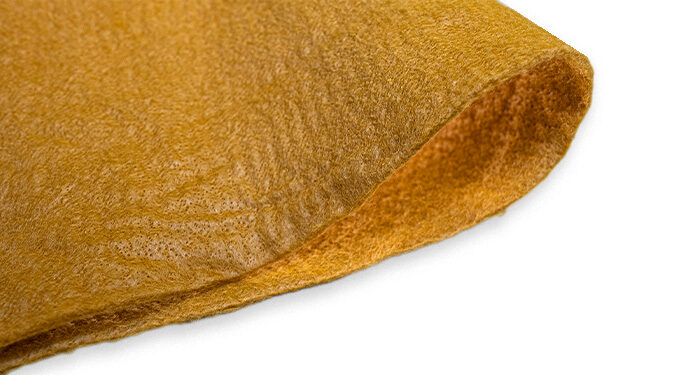

Nonwoven Polyphenylene Benzobisoxazole (PBO)

PROTECT AGAINST EXTREME HEAT

Polyphenylene Benzobisoxazole (PBO), Zylon®, is a premium fiber with high performance properties like the aramid fiber family (Kevlar® and Nomex®) but stronger. It’s the strongest fiber on the market to-date, it is six times stronger than Kevlar and ten times stronger than steel.

Like para-aramids, PBO nonwoven technical fabric is flame and high-temperature resistant, with an operating temperature of 1202°F (650°C). These properties, along with its heat extraction capabilities, make it a good choice for thermal and safety protective apparel interlinings, such as safety gloves, firefighter garments, and heat shields. PBO’s thermal properties allow it to be used as an insulator for electrical cables.

PBO has excellent mechanical stability, keeping its form under high-stress applications. It also offers exceptional cut resistance, minimal temperature shrinkage, high abrasion resistance, and good resistance to a wide range of chemicals. PBO is an expensive fiber, however, using it in small amounts in combination with other fibers can enhance the performance of the fabric. PBO loses strength in environments with exposure to UV light and moisture.

Albarrie uses PBO nonwoven technical fabric in its Defender Series Heat Felt products for high-heat conveyance, such as aluminum extrusion, glass tempering, and metal coil processing. We can produce fabrics between 5.89 and 103 oz/yd2 (200 – 3500 g/m2) in thicknesses between 0.039 – 0.472441 in (1-12 mm).



Key Benefits

Heat Extraction Capabilities

Removes heat from the source.

Long Service Life

High tensile strength means it can withstand abrasion in harsh environments.

Flame-Resistant

Does not support melting, dripping or combustion.

High-Temperature Resistance

Supports applications with operating temperatures up to 1220°F (650°C).

Product Details

FABRIC PROPERTIES
100% PBO

Tensile Strength

Excellent

Abrasion Resistance

Excellent

Acid Resistance

Good

Alkali Resistance

Good

Operating Temperature

1202°F (650°C)

Manufactured Weight Range

5.89 – 103 oz/yd2
(200 – 3500 g/m2)

Manufactured Thickness Range

0.039 – 0.472441 in (1-12 mm)

Investment

$$$$

MAXIMIZE PROTECTION AND PRODUCTIVITY IN HAZARDOUS CONDITIONS

PBO is a tough, durable, and lightweight fabric trusted in extreme heat applications. PBO is used for protective apparel by manufacturers because it provides good protection against heat and flame. This makes it ideal for those working in metal finishing and welding operations where extreme heat and exposure to flame are typical everyday occurrences.

In Albarrie ‘s Defender Heat Felts product line, PBO is used to make roller covers, endless belts, felt pads and Durafiber Boards, acting as a cushion to protect products during conveyance in Aluminum Extrusion, Glass Tempering, and Metal Coil Processing.

HEAT EXTRACTION CAPABILIITES

PBO can protect against heat and remove thermal loads from the source, thereby effectively cooling the product.

VIRGIN FIBERS

Albarrie uses only 100% virgin fibers.

QUALITY ASSURANCE

Albarrie inspects and tests each order as part of our Quality Assurance program, providing datasheets for weight, thickness, permeability, Mullen burst, and tensile strength according to ASTM standards.

Information provided by Albarrie on this website (the "Site") is for general information purposes only. All information on the Site is provided in good faith, however Albarrie makes no representation or warranty of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, availability or completeness of any information on the Site. Products may not work as advertised or perform differently based on application, operating conditions, and depend on chemical, thermal, and humidity and other factors.

Options

PTFE Finish
Calendering
Singeing
Heat Setting
Slitting
Scrim

Ready To Get Started?

Applications

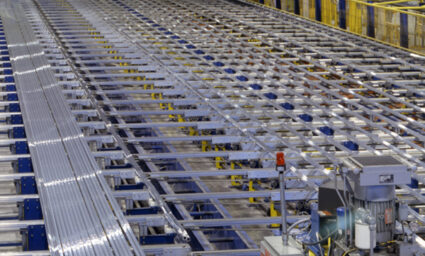

Aluminum Extrusion Press
